Fast Opening Filter Press Design for Different Types of Filter Press from Leo Filter Press,Filter Press Manufacturer from China

Edit :Admin    View :816

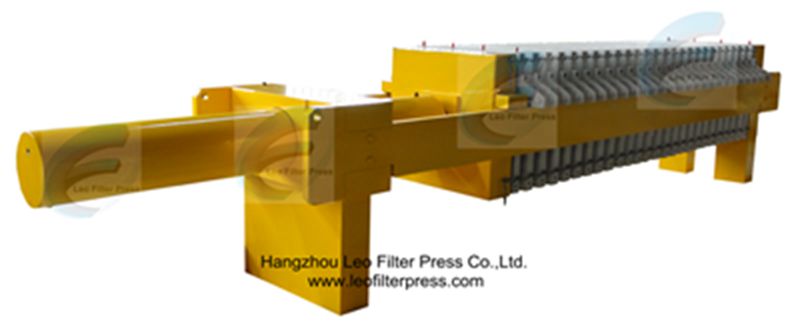

Leo company's product prototype.

Fast Opening Filter Press Design for Different Types of Filter Press from Leo Filter Press,Filter Press Manufacturer from China

Fast Opening Filter Press Design for Different Types of Filter Press from Leo Filter Press,Filter Press Manufacturer from China

Leo Filter Press Fast Hydraulic Opening Automatic Filter Press Operation and Design Instructions

The fast opening automatic filter press consists of filter press frame, filtering media, filter plate shifting system, hydraulic closing system, filter cake discharging assistant system, electrical system etc.

The filter press frame made from side bars, fixed head,movable head and middle support,filtering media consists from chamber filter plate and membrane filter plate,all the filter plates are put on the side bars in a mixed sequence,on the filter plates there are filter cloth which cover all the filtering surface,filter plate shifting system consists of hydraulic motor,driving chains,the hydraulic closing system consists from movable cylinder stand, sliding assembly parts. Filter cake discharging assistant system consists from two vibrating cylinder and fixed vibrating bars on the filter plates. Hydraulic system consists of oil pump, hydraulic controlling units,hydraulic driving units, high level oil tank etc. the electrical controlling system consists of electrical controlling panel,filter press mechanical action travel switch,hydraulic station oil pump motor,electromagnetic valve for concentrate feeding and electro valve for compressed air feeding


1.Special Leo Filter Press fast filter press opening system with fast filter cake discharging system,high working efficiency to fulfil fast operation requirement

2.Fast opening filter press model: membrane filter press,plate and frame filter press or recessed plate filter press(recessed chamber filter press)

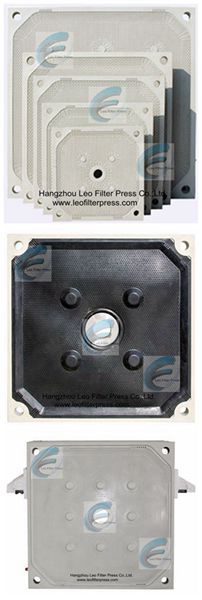

3.Membrane filter plate size available :800mmX800mm,1000mmX1000mm,1250mmX1250mm,1200mmX1200mm,1500mmX1500mm

4.All the filter press plates made from first class PP material,good flow ability,good filtrate flowing ability, easy for filter cake washing and less moisture content of filter cakes

5.Stronge filter press frame design,longer service lifetime,Leo Filter Press special and necessary safety design for operators

6.Filter press chamber capacity:100L to 2000L

7.Filter press feeding pump: slurry pump, diaphragm pump(membrane pump) piston pump or centrifugal pump
