Leo Filter Press Oil Filter Press for Different Kind of Oil Filtering Operation,Different Filter Press Design Specially for Oil Filtering

Edit :Admin    View :2017

Leo company's product prototype.

Leo Filter Press Oil Filter Press for Different Kind of Oil Filtering Operation,Different Filter Press Design Specially for Oil Filtering

Leo Filter Press Oil Filter Press for Different Kind of Oil Filtering Operation,Different Filter Press Design Specially for Oil Filtering

Different Filter Press Design for Oil Filter Press Operation from Leo Filter Press,Manufacturer from China


The oil filter press machine also called to be the oil purifying filter press,this is the special oil filter press for oil purifying operation, sometimes the client asked for further filtration after filter press or other oil pressing machines, such as olive oil.

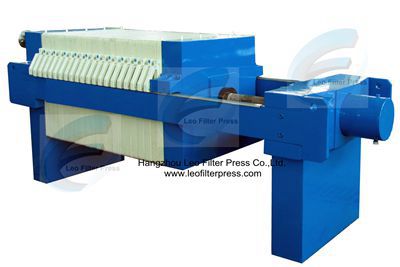

Sometimes for some special requirements, Leo Filter Press will use plate and frame filter press  for oil filtration, the plate and frame filter press construction based on different filtering media as the recessed plate oil filter press, there will be filter press plate and frames on the filter press machine system, among the filter press plate and frame there will be filter membrane or filter cloth to get different filtering mesh. Normally the plate and frame filter press is very popular for oil filtering,can be used for different kind of oil filtration operation.

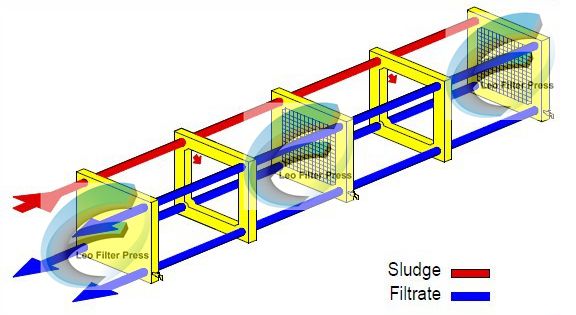

The plate and frame filter press working diaphragm:

The plate and frame filter press have two different kinds of filter plate, one is solid filter press plate and the other one is empty in the middle, it is filter frame, the filter press operation is based on this filter plates and frames.


Besides the filter press design, there are different kind of feeding pump, normally the feeding pump material is stainless steel so does the feeding and oil collecting pipes on the filter press frame ,Leo Filter Press always put special oil collection pan under the filter plate and frames to collect the oil leakage during filtration


this stainless steel filter press also called stainless steel plate and frame filter press,it is specially designed plate and frame filter press, not only its special stainless steel filter plate and frame material, but due to its special filter press operation way. Sometimes the capacity of this filter press model will be very small can be used for small capacity oil filtering projects.


the other purifying filter press is for oil recycling


that is there will be lubricate oil from car engines or other industrial machine's engine,all the oil will be a hazard to the environment, also there are continuous output of dirty oil during the operation of those machines or vehicle, then to collect them and to purify for next time using is more economic, then the filter press machine will be designed to meet the oil purifying filtration.
