Leo company's product prototype.

High Quality Membrane Filter Plate for Membrane Plate Filter Press from Leo Filter Press,Filter Press Membrane Plates ‘Manufacturer, Supplier and Designer from China

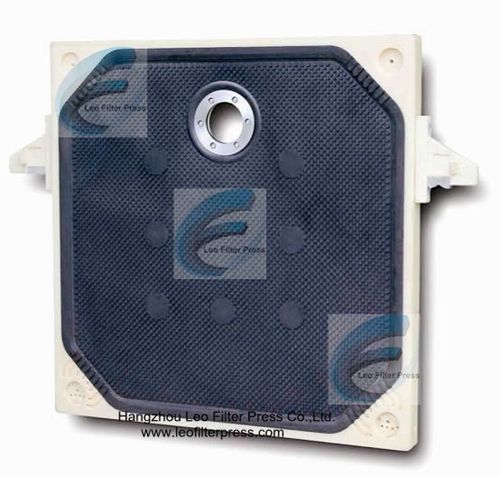

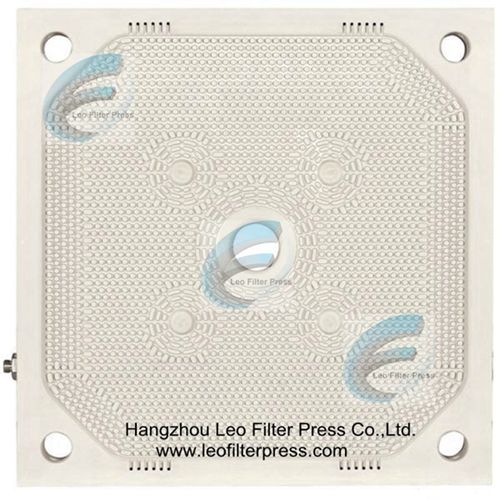

Leo Filter Press Membrane Plate Filter Press Plates

The filter press membrane plates are different in plate size, membrane material and membrane squeezing pressure. Especially the inflexible one piece type PP membrane filter plate, the biggest plate size can be 2000mmX2000mm, Max squeezing pressure at 20bar. Besides the PP membrane filter plate, Leo Filter Press also offer rubber membrane filter plates.

Normally the filter press consists of filter press frame, closing system, filter plate with filter cloth, when the filter press frame added the membrane filter plate, the filtering cycle time can be shorted , the filter press working efficiency will be higher. With the membrane squeezing function, the membrane plate filter press always can have less moisture filter cake. And by this

Leo Filter Press offers different size membrane filter plates, from 400mmX400mm, 630mmX630mm,800mmX800mm,1000mmX1000mm, 1250mmX1250mm,1500mmX1500mm,2000mmX2000mm

Standard membrane squeezing pressure: 10-20bar

Membrane material: PP(polypropylene, not PVDF or PVC) ,rubber

Membrane filter press closing force: automatic hydraulic

Membrane squeezing media: water or air

Feeding hole position: corner or middle

Quantity available: 1000pcs per year

Delivery: packed and deliver by sea or air

Quality: high quality with high performance

How to drainage from the membrane filter plate?

The same as the chamber filter plates, there are channels on the filter plate surface. Open discharge or closed discharge can be chosen.

How to change filter press membranes?

If rubber membrane filter plate, all the rubber membrane can be replaced and please follow our filter press operation manual instructions to change membrane sheet.

If PP membrane filter plate, the membrane sheet is fixed to the filter plate, it is can be changed.

How to inflate the membrane filter plates?

Please operate as our manual instructions, inlet water/or air or other squeezing media to inflate the membranes.

How to arrange the filter press plates on the frame?

One membrane filter plate,then one chamber filter plate,one membrane filter plate again, they are mixed arranged on the filter press.
