Filter Press Plate,Leo Filter Press Filter Press Plates for Different Size Filter Presses,Filter Press Manufacturer from China

Edit :Admin    View :1815

Leo company's product prototype.

Filter Press Plate,Leo Filter Press Filter Press Plates for Different Size Filter Presses,Filter Press Manufacturer from China

Filter Press Plate,Leo Filter Press Filter Press Plates for Different Size Filter Presses,Filter Press Manufacturer from China

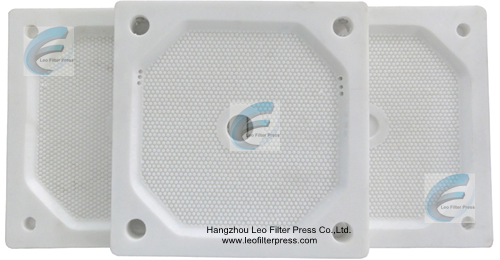

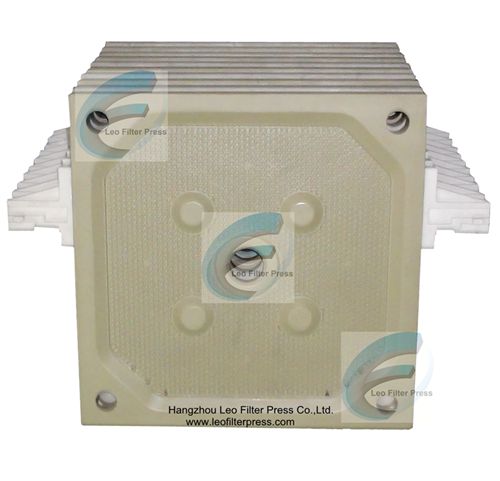

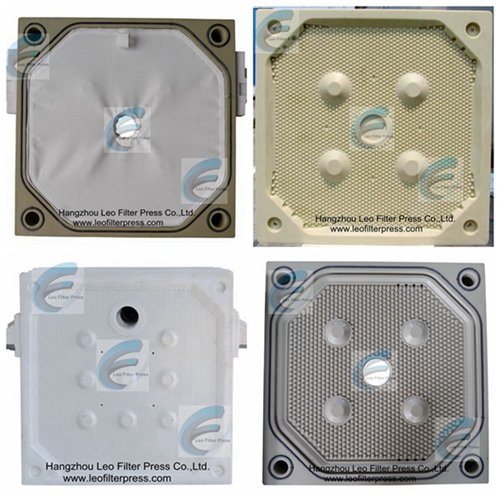

Filter Press Plates and Filter Press Plate Design for Various Kind of Automatic Filter Press and Recessed Plate Filter Press from Leo Filter Press

Leo Filter Press offers different size filter presses from 400mm to 2000mm,all the filter press plate design are different in slurry dewatering. According to different filtering operation, there will be different filter plate design, such as upper feeding, middle feeding or corner feeding and also for automatic filter press,the filter press plate need to work with the existing automatic plate movement system,Leo Filter Press also offers special automatic filter press filter plates for recessed plate filter press and also recessed membrane mixed pack filter press.

Leo Filter Press Plate Basic Design Specification:

Filter press plate thickness:50mm to 60mm

Plate Movement method: automatic or semi-automatic

Plate Application: recessed plate filter press,membrane filter press or plate and frame filter press

Single Filter Press Plate Chamber volume:2.6L to 140L

Plate Working Temperature: 0-100 centi degree

Max Membrane Squeezing Pressure:20bar

Max Plate Filtering Pressure: 20bar

Recessed Plate filter plate size:400mmX400mm,500mmX500mm,630mmX630mm,800mmX800mm,1000mmX1000mm,1200mmX1200mm,1500mmX1500mm,1500mmX2000mm,2000mmX2000mm

Quality: high quality for exporting

Packing: exporting standard seaworthy packing

Filter Press Cloth: different industrial filter cloth material available

Testing: plate damaging testing

Minimum order quantity: 1pcs

Output capacity: more than1000pcs/year
