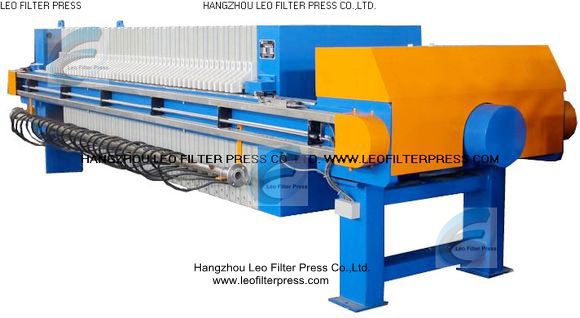

Diaphragm Filter Press(Membrane FilterPress) from Leo Filter Press,the Filter Press Manufacturer from China

Diaphragm Membrane Filter Press withDifferent Membrane Filter Plate Size from Leo Filter Press

The diaphragm filter press is also calledas membrane filter press which is widely used in high filter cake moisturecontent and faster filtering requirement projects,so the diaphragm filter pressworking principle is the same as the membrane filter press.

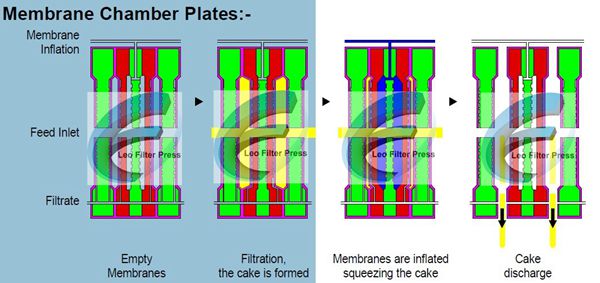

Membrane filter press working principle diaphragm

The old plate and frame filter press can’tdo further dewatering at the end of the filtering, but the diaphragm filterpress can do further dewatering by inflating the two diaphragms on the membranefilter plate.Now Leo Filter Press can offer PP and rubber diaphragms for themembrane filter plates.

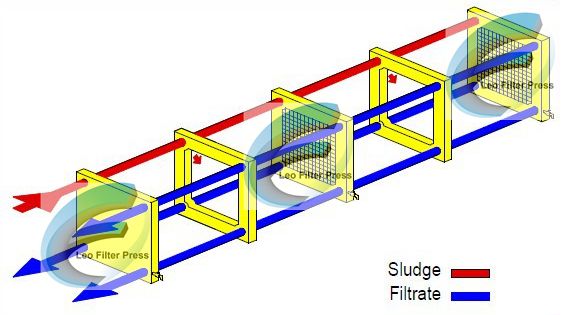

The traditional old plate and frame filterpress is only dewatering by filter press feed pump, here is the plate and framefilter press working diaphragm, from the diaphragm we can see the filter frameand filter plates are put on the side bars alternatively,between the filterplate and filter frame there is filter cloth,the only pressure for dewateringis from the filter press feed pump.

Brief Instructions for Diaphragm FilterPress from Leo Filter Press

Diaphragm plate size: from 400mm to 2000mm

Diaphragm squeezing pressure: from 10bar to20bar

Diaphragm material: PP or rubber

Diaphragm squeezing material: water or air

Chamber capacity from 10L to 20cubi meter

Filter press feed pumps: screw pump,diaphragm pump, slurry pump
