Membrane Filter Press from Leo Filter Press,the Filter Press Manufacturer from China offer Different Size and Capacity Membrane Filter Press

Leo company's product prototype.

MembraneFilter Press from Leo Filter Press,the Filter Press Manufacturer from Chinaoffer Different Size and Capacity Membrane Filter Press

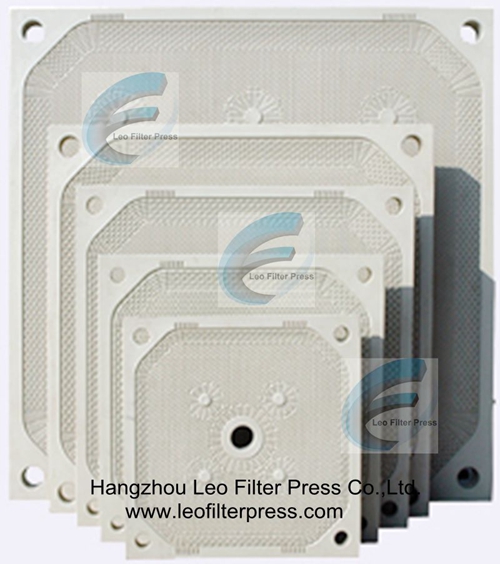

VariousSize Membrane Filter Press Plates with Different Design Filter Press Plates Available

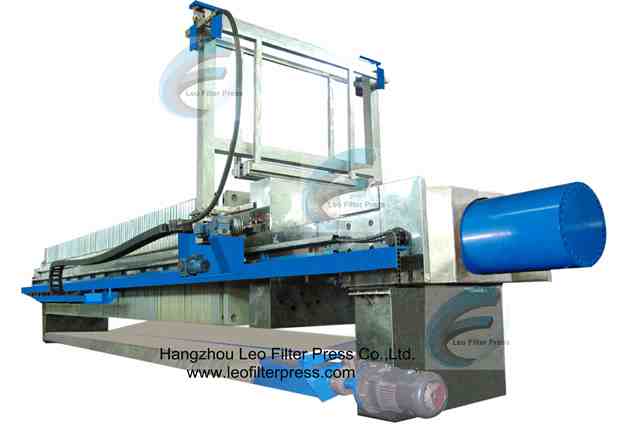

LeoFilter Press offers different types of filter press,membrane filter press isthe most popular type among all the filter presses.Leo Filter Press offersdifferent size of membrane filter press,the membrane filter press workingprinciple is the same as the old plate and frame filter press but at the lastof the filter press working,the membrane filter plates will be inflated to dryfilter cake in a fast and quick way.If need drier filter cake,the membranefilter press will be best choice.

MembraneFilter Press Design and Operation Instructions

MembraneFilter Plate size:

400mmX400mm,630mmX630mm,800mmX800mm,1000mmX1000mm,1200mmX1200mm,1250mmX1250mm,1500mmX1500mm,2000mmX2000mm

MembraneSqueezing Pressure: from 10bar to 20bar

Membranematerial:PP or rubber

Testingmethod: by China Filter Press Industry standard

Filterplate degree:A class for exporting

1. the Leo Membrane Filter Press adopts patent mould pressingfilter press plates’ producing technology, all the filter press plates are madeaccording to different filtering applications,among the standard models thereare high pressure or thigh temperature endurable types. 2. Patent membrane filter plate design , good sealing ability,long servicetime,less cost. 4. The Membrane filter press frame is made from solid steel, which can supportthe total weight of filter press plates and the pressure caused duringfiltering and membrane squeezing. 5. Reasonable filter press structure design, cheaper cost but perfect filteringperformance 6. Open and close all the filter press plates by a hydraulic system,safe andlabor saving of filter press operation, all the filter press operation can bedone by pressing the buttons on the controlling panel of the filter press. 9. Leo Filter Press’s special patent safety operation devices which willguarantee filter press operators’ safe operation. 10. For the standard membrane filter press, there are still special design andsystem available:filter cake delivery system, filter press operation platform,special PLC controlling system.
