Leo Filter Chamber Filter Press,the Recessed Chamber Plate Filter Press,Different Chamber Capacity and Size

Edit :Admin    View :1876

Leo company's product prototype.

Leo Filter Chamber Filter Press,the Recessed Chamber Plate Filter Press,Different Chamber Capacity and Size

Leo Filter Chamber Filter Press,the Recessed Chamber Plate Filter Press,Different Chamber Capacity and Size

Leo Filter Press, the professional Chamber Filter Press Manufacturer from China

Why Leo Filter Press Chamber Filter Press?

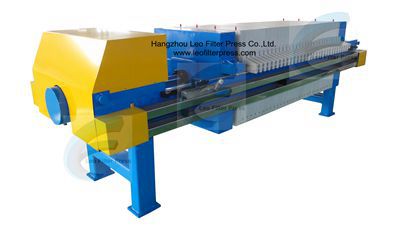

A chamber filter press is optimized from plate and frame filter press.The system is composed of chamber filter plates, filter press cloths,filter press frame, hydraulic and electrical system.It is composed of a certain number of plates on which a filter cloth is attached on both sides. All the chambers are formed after all the plates pressing by the hydraulic force. When all the chambers are full, the cylinder will move back and the cake discharging gap will be opened,all the filter cakes will be dumped, Leo Filter Press have 0 stock for all the filter press types, as all the filter press capacity will be fixed by the plate size and plate quantity,all the filter press machines are specially sized by the slurry capacity.

Leo Filter Press offer special site design and service to make sure the chamber filter press will fit to the existing working site with low price and stable operation performance. The main filtering media chamber filter plate from Leo Filter Press features high tension filter press frame design, good quality chamber filter plates,longer severvice time.

Leo Filter Press Chamber Filter Press Model Main Instructions:

Filter Press chamber filter press is made from high quality steel, strong filter press frame, with special big chamber volume design.The recessed chamber filter plate size from 400mm to 2000mm, chamber volume from 5L to 25000L

Hydraulic Method: Manual Hydraulic and Automatic Hydraulic

Chamber filtrate discharging types: open discharging or closed discharging

Max filtering pressure: 20bar

Why not plate and frame filter press but Leo Chamber Filter Press?

The old plate and frame filter press used to be popular among all the filter press users, the new chamber filter press was innovated and optimized , higher filtering pressure endurable(Leo Filter press have special produced high pressure chamber filter plate) and higher working temperature resistance(Leo Filter Press have special high temperature filtering chamber filter plate), more and more users realized this new model advantage, chamber filter press became much popular and now normally when someone say plate and frame filter press, he or she wants a chamber filter press indeed.
