Recessed Chamber Filter Press(Recessed Plate Filter Press )from Leo Filter Press,the Filter Press Manufacturer from China

Edit :Admin    View :1274

Leo company's product prototype.

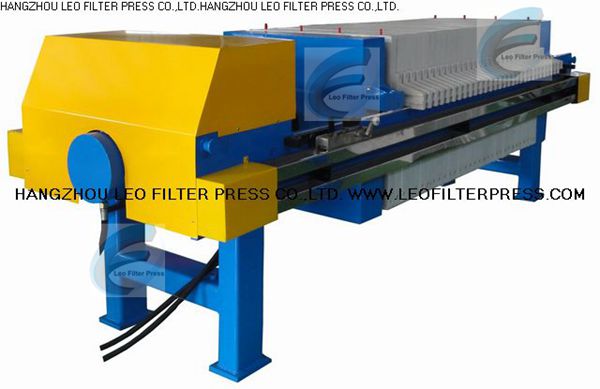

Recessed Chamber Filter Press(Recessed Plate Filter Press )from Leo Filter Press,the Filter Press Manufacturer from China

Recessed Chamber Filter Press(Recessed Plate Filter Press )from Leo Filter Press,the Filter Press Manufacturer from China

Leo Filter Press Offers Different Filter Press Design for Different Types of Filter Press,Recessed Chamber Filter Press and All Kinds of Other Filter Presses

The recessed chamber filter press is actually the chamber filter press,it is also called to be chamber recessed filter press or recessed plate filter press,it is the most normal filter press type along the filter presses.On the recessed chamber filter press,there are the same filter press side bars, filter press hydraulic system but the filter plates have only one kind,that is recessed chamber filter plate,the filter plate is not like the membrane filter plates which is hollow inside and can be inflated by squeezing media for cake squeezing, the both sides of the filter plate are recessed,that is why it is called as recessed chamber filter plate and recessed chamber filter press.The recessed chamber filter press is innovated from the traditional plate and frame filter press,its working principle also based on this old type filter press,so recessed chamber filter press is the updated model for plate and frame filter press.

The Brief Instructions for Leo Filter Press Recessed Chamber Filter Press

The filtering area: 1m2 to 1600m2

Max filtering pressure:20bar

Filter Press Operation: manual,semi automatic and automatic

Filter Press Design for Special Requirements:filter cloth washing system, filter plate shaking system,drip tray system etc.

Certificate: CE,ISO

Third Party Inspection: yes

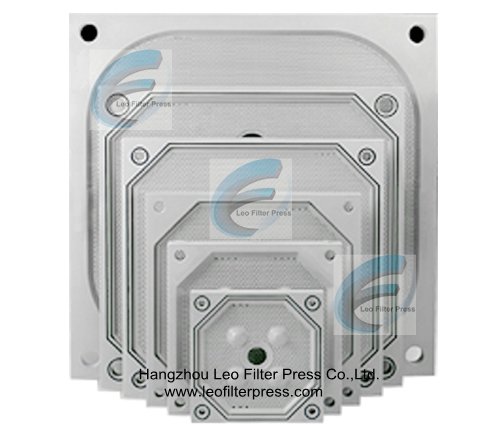

Recessed chamber filter plate size:400mm,500mm,630mm,800mm,1000mm.1200mm,1250mm,1500mm,1500X2000mm,2000mm

Chamber volume from 10L to 20000L
