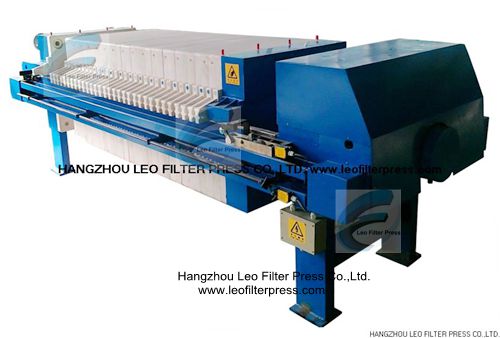

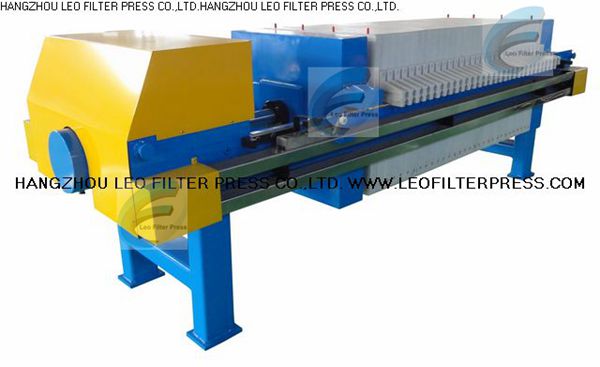

Industrial Powder Filter Press for Different Industrial Powder Products from Leo Filter Press

Leo company's product prototype.

Industrial Powder Filter Press for Different Industrial Powder Products from Leo Filter Press

Leo Filter Press Different Types and Design of Filter Press for Industrial Powder Dewatering Operation

There are many kinds of powders,according to its processing method can be devided into four kinds: mining source,that is natural produced,people can get them from its mine,such as limestone,quartz,diamond,kaolin,graphite,black blead.

And man-made powders in special chemical technology,such as Titanium Dioxde,silicon carbide,carbon white metallic powders such as copper powder,zinc powder,silver powder,gold powder etc.

other biologcial produced powders such as food powders,medicine powders

to use filter press to filter those different powder,the filter press need to be designed to be different to meet those special powder filtration,some of them immerged into a corrosive solution,some solutions are PP melting ones,the others are high temprature ones

from filter plate selection to filter press frame design,to choose side bar type or overhead beam design,anticorrsion surface treatment or not,and to cake collection,use belt conveyor or srew conveyor will be followed by the producing conditions seriously.

Powder filter press operation: automatic or semi-automatic operation

Filter press system: normally automatic hydraulic operation,if need special manual operation filter press system also available

Filter press plate size:400mm to 2000mm

Filter press feeding pump: membrane pump,screw pump or special chemical pump

Filter press cloth: special filter cloth for industrial powder dewatering operation purpose

Filter pressure: 6-8bar

Max Designed Membrane Squeezing Pressure:20bar

Filter area:1m2 to 2000m2

Motor size:1.5Kw to 7.5Kw
