Automatic Filter Press Capacity Design and Filter Press Operation Instructions from Leo Filter Press for XZ800 Automatic Filter Press

Edit :Admin    View :870

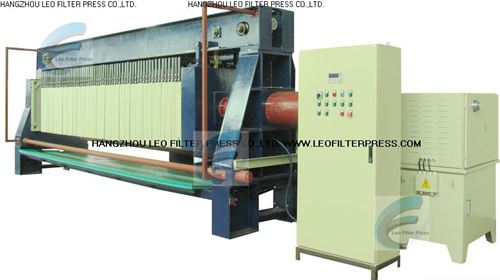

Leo company's product prototype.

Automatic Filter Press Capacity Design and Filter Press Operation Instructions from Leo Filter Press for XZ800 Automatic Filter Press

Automatic Filter Press CapacityDesign and Filter Press Operation Instructions from Leo Filter Press for XZ800Automatic Filter Press

  Leo Filter Press XZ800 Filter Press Basic Operation and Design SpecificationList

Filter Press Model: Leo Filter Press XZ800 automaticfilter press

Filter plate size: 800mmX800mm

Filter Press Style: full membrane filterpress/membrane chamber filter press/chamber recessed filter press

Filter Press Plate thickness: 60mm(standard platethickness)

Filter Plate Quantity: according to different membranefilter press/chamber recessed filter press capacity

Filter cake thickness: 30mm(standard filter presschamber thickness)

Filtering temperature endurable :50-100 centidegree(standard designd models)
Filtering pressure available: 0.6-1.0Mpa (standard designd models)

Membrane squeezing pressure: 0.6-2.0Mpa (standarddesignd membrane filter press)

Filter Press Closing Method:for small size filterpress,manual hydraulic system closing, bigger capacity filter press models by automatichydraulic closing

Filter cake dumping design: automatic

Filter cloth washing: yes, available

Design andOperation Characteristics for Leo Filter Press XZ800 Automatic Filter Press :

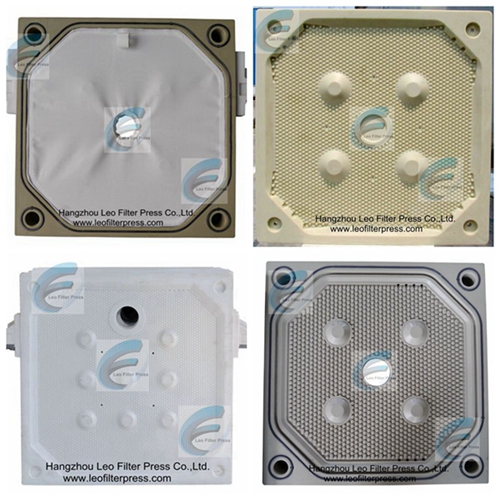

1. All the filter press platesadopt patent filter plate mould pressinge producing technology,all the filterpress plates are produced according to high quality and high intensity withbest PP(polypropylene)material,high pressure and high temperatureendurable,longer service time.

2.  The filter press frame is made from solid steel from welding, which cansupport the total weight of filter press plates with the filter cakes and thepressure during filtering

4.    Compact filter press system design, economicinvestment for the whole filter press system.

5.  Full automatic design,all the filter press operation and working will be controlled by the PLCsystem, filter press can work under high automatic degree.

6.  Other various specialdesign factors for Leo Filter Press XZ800 filter press: filter cakechute,filter cake cart, platform, catwalk, PLC control,automatic filter clothwashing system, filter cloth shaking system, filter cloth vibrating system

Leo Filter Press XZ800 Automatic Filter Press Basic Operation and CapacitySpecification List

Filter Press Model

Filtering Area m2

Filter Plate(pcs)

Chamber Volum (L)

External Size
(mm)

Weight (kg)

X

A

M

Z10/800-U

K

B

10

9

157

3465X1200X1200

2300

X

A

M

Z15/800-U

K

B

15

13

235

3705X1200X1200

2420

X

A

M

Z20/800-U

K

B

20

19

313

4065X1200X1200

2600

X

A

M

Z25/800-U

K

B

25

23

391

4305X1200X1200

2720

X

A

M

Z30/800-U

K

B

30

29

470

4665X1200X1200

2900

X

A

M

Z40/800-U

K

B

40

39

626

5265X1200X1200

3200

X

A

M

Z50/800-U

K

B

50

49

798

5865X1200X1200

3500

X

A

M

Z60/800-U

K

B

60

59

955

6465X1200X1200

3900

X

A

M

Z70/800-U

K

B

70

69

110

7065X1200X1200

4280

X

A

M

Z80/800-U

K

B

80

79

1268

7665X1200X1200

5260

The uppermentioned specifications only for your reference,

For Leo FilterPress users,please follow all the operation and working showed among” LeoFilter Press XZ800 Automatic Filter Press Operation and MaintenanceManual"
